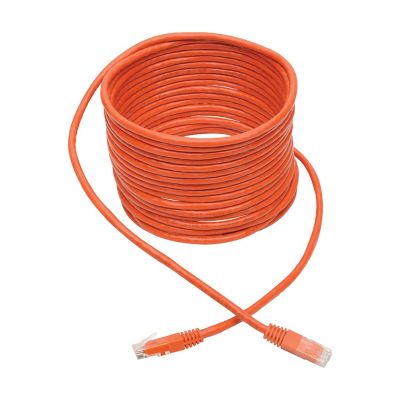

Cat6 Gigabit Molded (UTP) Ethernet Cable (RJ45 M/M), Orange, 25 ft. (7.62 m)
Networking-copper
Cat6 Cable Ideal for Your High-Density Gigabit Ethernet Network
This Cat6 1G UTP Ethernet cable features an RJ45 (MALE) connector on one end and an {SideBConnector1} connector on the other. It is recommended for connecting network components like printers, computers, copiers, routers, servers, modems, hubs and switches in high-density data centers and network closets. Designed for fast transmission and excellent signal quality, this cable ensures peak performance throughout your local area network (LAN).

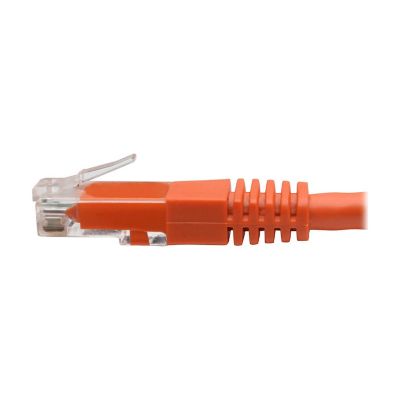

Snagless Male Connectors Add Extra Protection During Installation
The connectors’ snagless design protects the locking tabs from being damaged or broken off during installation. Integral strain relief gives the Ethernet cable extra flexibility, reduces stress and helps the cable move freely without cracking or breaking loose from the connector.
Colored Orange to Avoid Misidentification That Can Cause Costly Downtime
The cable has a Orange jacket, which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected.
| Product Name |
Eaton Tripp Lite series preterminated patch cable
|
| Catalog Number |
N200-025-OR
|
| UPC |
037332204677
|
| Product Length/Depth |
0.5 in
|
| Product Height |
10 in
|
| Product Width |
8 in
|
| Product Weight |
0.69 lb
|
| Compliances |
RoHS
IEEE Certified REACH |
| Global Catalog |
N200-025-OR
|
| Product Type |
Preterminated patch cable
|
| Special features |
0% to 90% RH, Non-Condensing
|
| Cable Jacket Rating |
CM
|
| Cable Jacket Color |
Orange
|
| Package Contents |
N200-025-OR Cat6 Gigabit Molded Patch Cable, Orange, 25-ft. (7.62 m)
|
| System Requirements |
PoE
Cat6 |
| IEEE Standards Supported |
802.3an
802.3at |
| Cable Jacket Material |
PVC
|
| Network Speed |
1 Gbps (Gigabit)
|
| Contact Plating |
Gold
|
| SideA Connector1 |
RJ45 (MALE)
|
| SideB Connector1 |
RJ45 (MALE)
|
| Operating Humidity |
0% to 90% RH, Non-Condensing
|
| Operating Temperature Range |
14° to 104°F (-10° to 40°C)
|
| Storage Humidity Range |
5° to 122°F (-15° to 50°C)
|
| Conductor Gauge |
24 AWG
|
| Outer Cable Diameter |
6.0 mm
|
| Number Of Conductors |
4 Pair
|
| Bandwidth per TIA Standard |
250 MHz
|
| Maximum Bandwidth as Tested |
500 MHz
|
| Cable Shielding |
UTP
|
| Cable Sheath Material |
UTP
|
| Connector group |
RJ45
|
| Conductor Material |
Solid Copper
|
| Connector |
RJ45 (male)
|
| POE Type |
Type 2 PoE+ (30W, IEEE 802.3at) |
| Wiring Method |
EIA/TIA 568B
|
