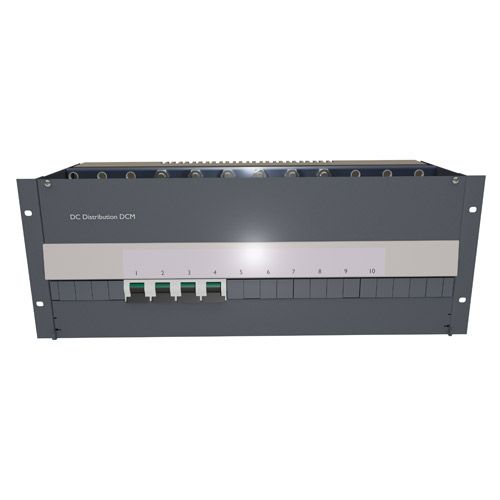

The DCM 1000 is a 4RU high and 19” mounting distribution module which provides protection for your wide selection of telecommunications loads up to 1200A. The DMC 1000 has an A/B dual distribution, powder coated steel chassis and is suitable for both 18mm and 27mm pitch din MCBs - all contribute to system solutions to suit your requirements.
| Dimensions (mm) |
480 (W) x 178 (H) 146 (D) – 4RU, fits IEC 19” racks |
| Weight |
4.7 Kg |
| Operating Voltage |
24 – 48Vdc nom (max 65V) |
| Max DC Current |
1200A (2 x 600A) |
| Load MCBs |
Order as separate items |
| MCB Type |
27 mm (up to 125A) 18 mm (up to 63A) |
| Maximum Temperature |
50o C; MCBs typically derated at 40o C |
| Load Cable connection |
Common – 24 x M8, 2 x M10 threaded holes Live – tunnel terminals in MCBs |
| Feed Cable Size |
Common – 4 x threaded M10 holes Live – 2 x threaded M10 holes, 2 x F 10.5mm clear holes (suits up to 150 mm2 cable). |
| MCB Alarm |
Volts free C/O relay Contact rating 0.5A/100V Electronic alarm sensing |
