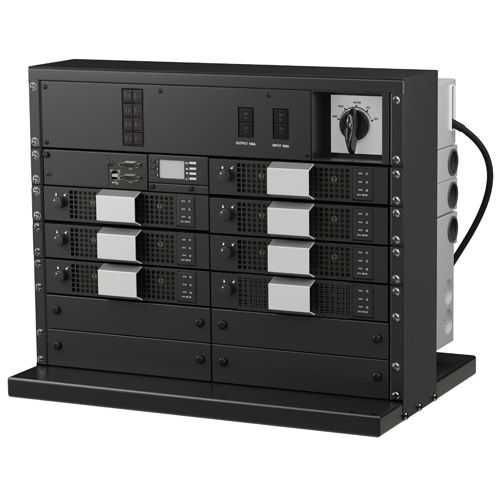

Matrix Modular Inverter Solution

Integrated power solutions | Eaton

The Eaton® Matrix™ Modular Inverter Solution is an integrated, modular max 18kVA inverter power system designed for your applications where a very high reliability AC supply is required. Industry leading power density, versatile modular design and variety of configurations make sure that the Matrix ensures reliable telecommunications and industrial AC power for you.

Contact me about this product

Back to search

Overview Specifications Resources Support

Modularity

The Matrix modular design ensures maximum flexibility to configure solutions to your requirements. For different customer needs the modules include modular 1.5kVA inverter modules, Static Transfer Switch, controller, interface module and Maintenance Bypass Module. The Matrix Static Transfer Switch provides automatic and instantaneous load transfer between mains power and inverter power and back again, to ensure uninterrupted AC supply to sensitive electronic equipment

Intelligent system

The Matrix solution uses digital microprocessor control which gives real-time system status through comprehensive LCD /LED displays and allows program settings through the display panel.

Specifications

Technical Specifications

DC Input
Nominal Voltage	48Vdc
Operating Range	40.5Vdc ~ 58Vdc
Surge Protection	Telcordia GR-1089 CORD, ANSI C62.41-IEEE, STD 587-1980
Input Protection	Reverse polarity protection
AC Output
Output Waveform	Pure sine wave
Output power	18kVA (max)
Power factor	0.8
Nominal Output	110/115/120Vac 208/220/230/240Vac
Frequency	50/60Hz ±0.5%
Crest factor	3:1
THD	<3%, linear load <5%, non-linear load
Efficiency	Min 88% at rated load
Overload	1.5Inom >20s 1.25Inom temperature controlled
Modules
Inverter	INV-4810E: 1000VA/800W inverter module INV-4810: 1000VA/800W inverter module INV-4815E: 1500VA/1200W inverter module INV-4815: 1500VA/1200W inverter module
Static Transfer Switch	INV-STS-050: 50A static transfer switch INV-STS-100: 100A static transfer switch
Controller	INV-MC-1000: Controller module INV-IFC-1000: RS232/USB/RS485 interface module
Shelf	INV-SS-2-1U: Chassis for two inverters (1U) INV-STSSS-1U: Chassis for controller/STS-050 (1U) INV-STSSS-2U: Chassis for controller/STS-100 (2U) INV-MBSDU-50: 50A maintenance bypass, power distribution module (2U) INV-MBSDU-100: 100A maintenance bypass module (2U)
