Circuit breakers

Eaton offers a complete range of compact residual current devices for fault current/residual current and additional protection, in residential and small commercial applications.

The Type F circuit breakers are a special variant of type A devices with modified frequency characteristics. This Type F RCD complies with IEC/EN 62423 and provides safe and reliable protection against sinusoidal residual currents and pulsating DC fault currents. It can also handle residual currents with mixed frequencies of up to 1 kHz (10, 50, 10000 Hz) as per IEC/EN 62423.

Contact me about this product

Back to search

Overview Models Resources Support

INCREASED PROTECTION

detect DC residual current up to 10mA

current withstand capability

3 kA

4-POLE DEVICES FOR

2-, 3- and 4-pole connections

Core features

Reduction of nuisance tripping thanks to time delay
Comprehensive range of accessories
Increased protection in applications with 1-phase frequency converters thanks to the detection of mixed frequencies
Contact position indicator red-green
Can be positioned at the top or bottom of the busbar, the installation position does not affect the functioning
Twin-purpose terminal (lift/open-mouthed) with mains connection on either side and free terminal space despite installed busbar
Z-A universal tripping signal switch and Z-HK auxiliary switch can be retrofitted

The different types come with different advantages

Since tripping does not depend on the mains voltage, this RCD is suitable for “fault current/residual current protection” as well as “additional protection” within the meaning of the applicable standards.
Type G/F: High reliability against unwanted tripping. Protection against AC current and tolerate superimposed smooth DC residual currents of up to 10 mA
Type S/F: Selective residual current devices. Protection against AC current and tolerate superimposed smooth DC residual currents of up to 10 mA

Reliable protection for machines

These products help maintain an optimal system and provide additional protection against residual earth leakage currents for a wide range of applications. They come with different tripping characteristics to cater for a variety of electrical systems and components. The devices offer a wide range of nominal current values and comprehensive optional accessories.

Enhanced application protection

Increased protection in applications with 1-phase frequency converters thanks to the detection of mixed frequencies and a higher load capacity for smooth DC fault currents up to 10 mA.

Online configurator - design your own customized configurations

The xComfort KLV series and our switching and protection devices are based on a modular design so that you can assemble any combination you need. In addition to a number of standard pre-wired distribution boards, Eaton also supplies customized configurations on request. If you are not yet sure which type of distribution board is the right fit for you, simply fill in our configurator with ordering function.

Access the configurator

Specifications

Filters

Search within these values

Try another search

Your search "" did not match any documents or products.

Download Links

Brochures

RCDs for mixed frequencies Type F

BR019005EN

(PDF 4 MB , 02/16/2021)

Catalogs

xPole Controlling&Switching, Busbar systems, Other Accessories

xPole Controlling&Switching, Busbar systems, Other Accessories Catalog, CA019015EN

(PDF 25 MB , 12/16/2022)
xpole pfim-f - Residual Current Circuit Breaker

xPole PFIM-F - Residual Current Circuit Breaker, Catalog, CA019030EN

(PDF 643 KB , 03/08/2021)
xPole Protective Devices

xPole Protective Devices Catalog, CA019014EN

(PDF 34 MB , 02/16/2021)

Contact me about this product

Technical support

Locate a distributor

Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we’re accelerating the planet’s transition to renewable energy and helping to solve the world’s most urgent power management challenges.

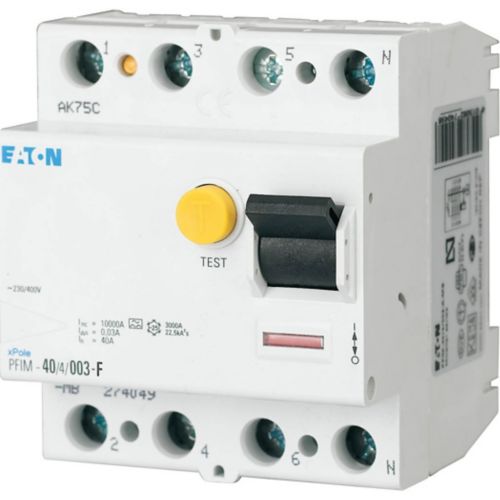

xPole PFIM Type F residual current circuit breaker
