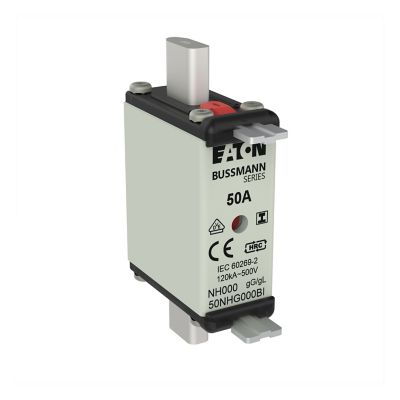

50NHG000BI
Model code: NH FUSE 50A 500V SIZE 000 GG IMGL

Fuse-link, LV, 50 A, AC 500 V, NH000, gL/gG, IEC, dual indicator, insulated gripping lugs

Product specifications
Add a free sample to the cart
Contact me about this product

General specifications

Product Name
Eaton Bussmann series low voltage NH Fuse
Catalog Number
50NHG000BI
EAN
5027590483186
UPC
051712532396
Product Length/Depth
79 mm
Product Height
51 mm
Product Width
21 mm
Product Weight
131 g
Compliances
CE Marked
RoHS Compliant
Certifications
IEC 60269-1
IEC 60269-2
DIN 43620
Model Code
NH FUSE 50A 500V SIZE 000 GG IMGL

Electrical data

Amperage Rating
50 A
Voltage rating
500 V
Voltage type
AC
Breaking capacity
120 kA
Class
Class gG/gL

Product specification

Fuse size
NH000
Insulated metal gripping lugs (IMGL)
Yes

Accessories

Suitable for
Microswitch 170H0236
EBF Vertical fuse rail
EBV Vertical fuse switch-disconnectors
EBH Size 000 Horizontal fuse switch-disconnectors
