Eaton 93E UPS

The Eaton 93E UPS delivers simply effective power protection for electrical and IT applications. It offers a lower Total Cost of Ownership (TCO) through a combination of energy-efficiency, high reliability and compact footprint. The Eaton 93E is an ideal solution for commercial buildings and technical facilities, as well as small to medium-sized data centers that require highly reliable protection.

Contact me about this product
Back to search
Topology
Double conversion
Power rating
15 – 200 kVA
Efficiency
Up to 96.1 %

Reliable

By the merits of its long experience, Eaton has developed a design and manufacturing process that is proven to be reliable. Moreover, regardless of application, Eaton’s UPSs benefit from the wide service network and monitoring options that will deliver peace of mind.

Efficient

Eaton minimizes operational expenditure with higher efficiency, which also enhances higher sustainability, through reduced carbon emissions. With a transformer-free design and sophisticated sensing and control circuitry, Eaton 93E is capable of achieving up to 99.3% high efficiency mode rating, which make it one of the most energy-efficient UPSs in its class and it still provides maximum load protection.

Compatible

UPSs are usually complimented with generators for the continuous power supply of critical equipment. The compatibility of the electrical characteristics between them guarantees their harmony. Active power factor correction (PFC) provides 0.99 input power factor and <5% ITHD, thus eliminating interference with other critical equipment in the same network and enhancing compatibility with generators. Eaton 93E is optimized for protecting modern 0.9 p.f. rated IT equipment without the need to oversize.

Compact

To overcome the rising cost of storage and to exploit limited spaces, the footprint of a UPS plays an important role in maximizing the potential of every inch. Eaton 93E is 30% smaller than similar competitive solutions and has a maximum width of 600 mm which enables seamless “in-row” integration with IT racks.

Eaton's energy saving technologies

Control your costs by using Eaton's energy saving technologies
Learn more
Specifications

Eaton 93E UPS 15-200 kVA technical specifications

Eaton 93PS Marine UPS 20 kW

Eaton 93E UPS 15-200 kVA

Eaton 93PS Marine UPS 20 kW

Phases in/out
 3:3
Power range

 15 - 200 kVA
Number of power modules
 1
Available voltage levels (line to line)

208 V, 230 V, 380 V, 400 V,

415 V,  440 V, 480 V, 690 V

Eaton 93E UPS 15-200 kVA technical specifications

Product Images

Eaton 93E UPS 40 kVA
Eaton 93E UPS 20 kVA
Eaton 93E UPS 20 kVA
Eaton 93E UPS 30 kVA

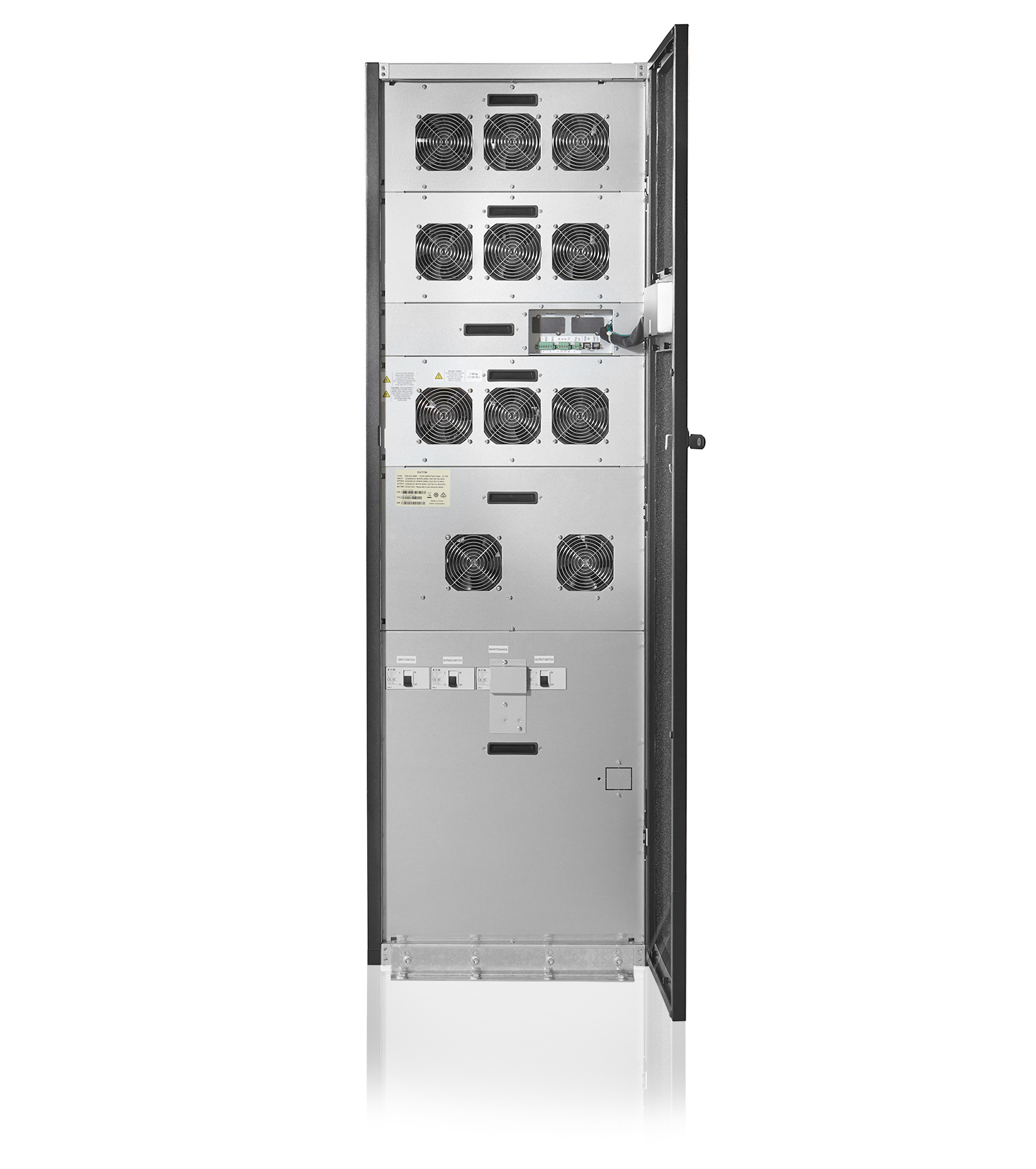

Eaton 93E UPS 80 kVA

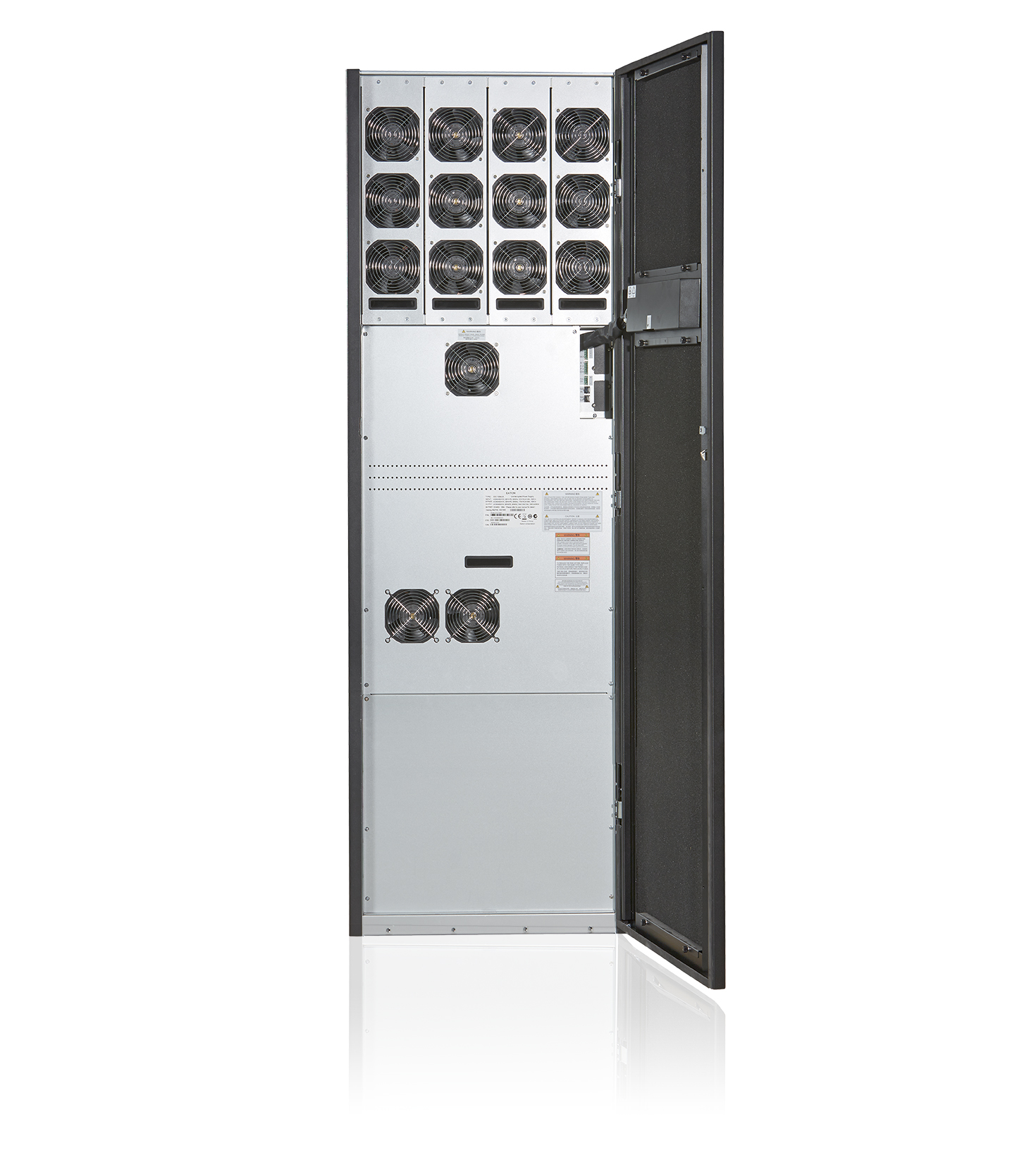

Eaton 93E UPS 100 kVA
Eaton 93E UPS 200 kVA
Download Links
  • Slide 1
    93E Introduction Sales Presentation
    (PPT 4 MB , 03/12/2013)
  • Slide 1
    93E 15kVA-400kVA Sales Training
    (PPT 1 MB , 14/04/2019)
  • Slide 1
    93E 400-500kVA Sales Training
    (PPT 3 MB , 24/09/2015)
