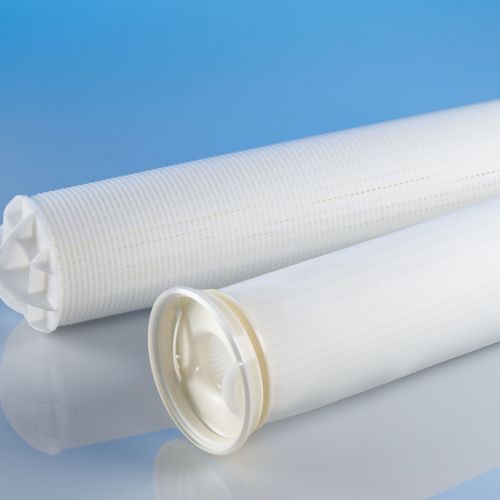

MAX-LOAD pleated filter bags are manufactured from nominal rated polypropylene or polyester extended-life needle felt. The exceptional construction increases the filter bags dirt-holding capacity and lifetime by up to ten times more than standard needle felt filter bags.
Key MAX-LOAD filter bags applications
MAX-LOAD pleated filter bags are manufactured from nominal rated polypropylene or polyester extended-life needle felt. The exceptional construction increases the filter bags dirt-holding capacity and lifetime by up to ten times more than standard needle felt filter bags.
Cuatro es el número máximo de elementos en la herramienta de comparación.
Su búsqueda "" no arrojó coincidencias de documentos ni productos.
Copiado en el portapapeles
Se requiere un mínimo de dos elementos para usar la herramienta de comparación.
Sorry, we can't get that information right now.
| Materials | Extended-life needle felt polypropylene or polyester |
|
| Seal rings | Polypropylene or polyester SENTINEL seal ring |
|
| Retention ratings |
1, 5, 10, 25, 50 µm |
|
| Sizes | 01: Ø 7 x 14” L (180 x 345 mm) 02: Ø 7 x 29” L (180 x 730 mm) |
|
| Filter area | 01: 8.6 ft² (0.8 m²) 02: 17.2 ft² (1.6 m²) |
|
| Max. operating temperature |
Polypropylene: 194 °F (90 °C) Polyester: 275 °F (135 °C) |
|
| Max. differential pressure |
36.2 psi (2.5 bar) |
|
| Recommended change-out pressure for disposal |
11.6 – 21.7 psi (0.8 – 1.5 bar) |
|
| Max. flow rates |
01: 44 GPM (10 m³/h) 02: 88 GPM (20 m³/h) |
