Eaton Moeller® series LS Position switch, 2 N/C, basic, spring-powered interlock LS-S02-24DFT-ZBZ/X
| Product Name |
Eaton Moeller® series LS Position switch
|
| Catalog Number |
106823
|
| Model Code |
LS-S02-24DFT-ZBZ/X
|
| EAN |
4015081065837
|

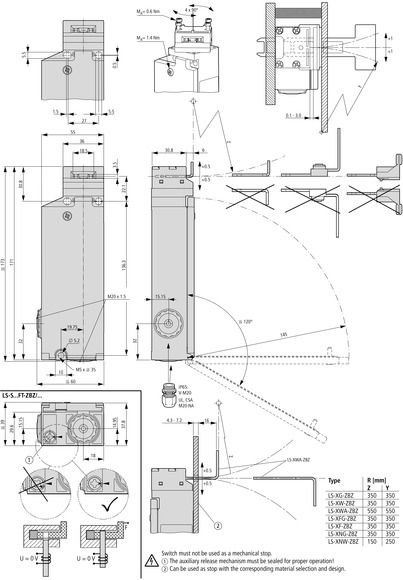

| Product Length/Depth |
55 mm
|
| Product Height |
170 mm
|
| Product Width |
37 mm
|
| Product Weight |
0.43 kg
|
| Certifications |
IEC/EN 60947
UL 508 CSA File No.: 012528 CE CSA-C22.2 No. 14 UL File No.: E29184 CSA UL CSA Class No.: 3211-03 IEC/EN 60947-5 UL Category Control No.: NKCR |
| Type |
|
| Features |
Expandable
Forced opening |
| 10.10 Temperature rise |
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
|
| 10.11 Short-circuit rating |
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
|
| 10.12 Electromagnetic compatibility |
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
|
| 10.13 Mechanical function |
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
|
| 10.2.2 Corrosion resistance |
Meets the product standard's requirements.
|
| 10.2.3.1 Verification of thermal stability of enclosures |
Meets the product standard's requirements.
|
| 10.2.3.2 Verification of resistance of insulating materials to normal heat |
Meets the product standard's requirements.
|
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects |
Meets the product standard's requirements.
|
| 10.2.4 Resistance to ultra-violet (UV) radiation |
Meets the product standard's requirements.
|
| 10.2.5 Lifting |
Does not apply, since the entire switchgear needs to be evaluated.
|
| 10.2.6 Mechanical impact |
Does not apply, since the entire switchgear needs to be evaluated.
|
| 10.2.7 Inscriptions |
Meets the product standard's requirements.
|
| 10.3 Degree of protection of assemblies |
Does not apply, since the entire switchgear needs to be evaluated.
|
| 10.4 Clearances and creepage distances |
Meets the product standard's requirements.
|
| 10.5 Protection against electric shock |
Does not apply, since the entire switchgear needs to be evaluated.
|
| 10.6 Incorporation of switching devices and components |
Does not apply, since the entire switchgear needs to be evaluated.
|
| 10.7 Internal electrical circuits and connections |
Is the panel builder's responsibility.
|
| 10.8 Connections for external conductors |
Is the panel builder's responsibility.
|
| 10.9.2 Power-frequency electric strength |
Is the panel builder's responsibility.
|
| 10.9.3 Impulse withstand voltage |
Is the panel builder's responsibility.
|
| 10.9.4 Testing of enclosures made of insulating material |
Is the panel builder's responsibility.
|
| Electric connection type |
Cable entry metrical
|
| Enclosure material finishing |
Other
|
| Fitted with: |
Auxiliary release mechanism
Interlock monitoring |
| Operating frequency |
800 Operations/h
|
| Pollution degree |
3
|
| Actuator alignment |
Other
|
| Climatic proofing |
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78 |
| Enclosure material |
Plastic
Insulated material |
| Enclosure type |
Cuboid
|
| Rated operational current (Ie) at DC-13, 110 V |
0.8 A
|
| Rated operational current (Ie) at DC-13, 125 V |
0.8 A
|
| Rated operational current (Ie) at DC-13, 220 V, 230 V |
0.3 A
|
| Rated operational current (Ie) at DC-13, 24 V |
3 A
|
| Rated operational current for specified heat dissipation (In) |
6 A
|
| Sensor height |
173 mm
|
| Sensor length |
39 mm
|
| Static heat dissipation, non-current-dependent Pvs |
0 W
|
| Width sensor |
60 mm
|
| Product category |
Basic units with spring-powered interlock (closed-circuit principle)
|
| Action |
2021118113756-Mechanical Limit Switches.xlsm-Data
|
| Force for positive opening - min |
50 N
|
| Rated impulse withstand voltage (Uimp) |
4000 V AC
|
| Actuating force at beginning/end of stroke |
25 N/15 N (plug-in/pull-out)
|
| Explosion safety category for dust |
None
|
| Explosion safety category for gas |
None
|
| Actuator type |
None
|
| Ambient operating temperature - max |
70 °C
|
| Ambient operating temperature - min |
-25 °C
|
| Diameter sensor |
0 mm
|
| Equipment heat dissipation, current-dependent Pvid |
0 W
|
| Heat dissipation capacity Pdiss |
0 W
|
| Heat dissipation per pole, current-dependent Pvid |
0.13 W
|
| Number of contacts (change-over contacts) |
0
|
| Number of contacts (normally closed contacts) |
2
|
| Number of contacts (normally open contacts) |
0
|
| Number of safety auxiliary contacts |
2
|
| Rated insulation voltage (Ui) |
400 V
|
| Rated operational current (Ie) at AC-15, 125 V |
6 A
|
| Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V |
6 A
|
| Rated operational current (Ie) at AC-15, 24 V |
6 A
|
| Rated operational current (Ie) at AC-15, 380 V, 400 V, 415 V |
4 A
|
| Mounting position |
As required
|
| Rated conditional short-circuit current (Iq) |
1 kA
|
| Overvoltage category |
III
|
| Connection type |
Screw terminal
|
| Duty factor |
100 % (Magnet)
|
| Degree of protection |
IP65
NEMA Other |
| Interface type |
None
|
| Switch function type |
Slow-action switch
|
| Voltage tolerance |
1.1 x Us, Pick-up and drop-out values
0.85 x Us, Pick-up and drop-out values |
| Screw size |
PH1, Terminal screw
|
| Lifespan |
1,000,000 mechanical Operations
|
| Rated control supply voltage |
24 V DC (Us, for magnet drive)
|
| Repetition accuracy |
0.02 mm (Contacts/switching capacity)
|
| Shock resistance |
10 g, Standard-action contact, Mechanical, Half-Sinusoidal shock 20 ms
|
| Mechanical holding force |
1200 N (according to GS-ET-19 (04/2004), XNW)
1600 N (according to GS-ET-19 (04/2004), XWA, XFG, XF) 1700 N (according to GS-ET-19 (04/2004), XG, XW, XNG) |
| Supply frequency |
Max. 400 Hz, Contacts
|
| Suitable for |
Safety functions
|
| Power consumption |
8 W at 24 V DC (electromechanical actuation)
11 VA at 230 V AC (electromechanical actuation) 8 VA at 120 V AC (electromechanical actuation) |
| Tightening torque |
0.9 Nm, Screw terminals
|
| Short-circuit protection rating |
Max. 6 A gG/gL, Fuse, Contacts
|
| Terminal capacity (flexible with ferrule) |
2 x (0.5 - 1.5) mm²
1 x (0.5 - 1.5) mm² |
| Terminal capacity (solid) |
1 x (0.75 - 2.5) mm²
2 x (0.75 - 1.5) mm² |
