MT4-115-R

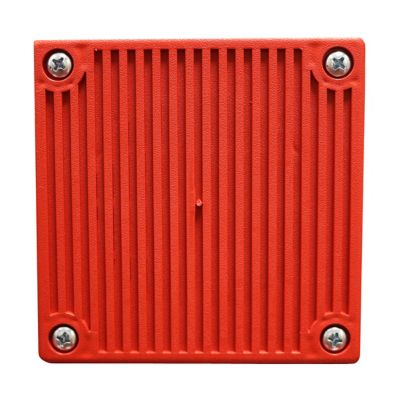

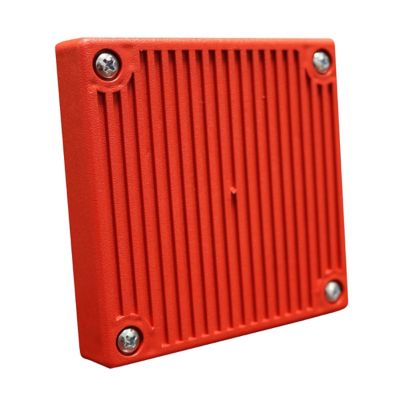

Eaton Wheelock MT multitone horn, surface or flush, red, 120 VAC, indoor/outdoor

Product specifications

General specifications

Product Name
Eaton Wheelock MT multitone horn
Catalog Number
MT4-115-R
UPC
786697262234
Product Length/Depth
0.76 in
Product Height
4.06 in
Product Width
4.06 in
Product Weight
0.363 lb
Certifications
Not Applicable
Global Catalog
MT4-115-R
Product Type
Multitone horn

Product specifications

Type of horn
Multitone horn
Housing color
Red
Housing material
UV stabilized plastic
Operating Temperature
–40°F to 150°F (–40°C to 66°C)
Indoor/outdoor
Indoor/outdoor
Mounting Method
Surface or flush
Tones
Code-3 Horn
Bell
Siren or Hi/Lo Tone
Slow Whoop
Horn
Code-3 Tone
March Time Horn
Voltage
120 VAC
Approvals
CSFM
BFP
FM
UL
MEA
Sound Level (dBA)
99

Export product specification

Certification reports

Drawings

Installation instructions

Specifications and datasheets

Technical data sheets

Note: If file(s) are missing from the .zip download then the file type is not supported by bulk download.
