Eaton Moeller® series FAK Palm switch, 1 N/C, emergency switching off, surface mounting
| Product Name |
Eaton Moeller® series FAK Palm switch
|
| Catalog Number |
229747
|
| Model Code |
FAK-R/V/KC01/IY
|
| EAN |
4015082297473
|
| Product Length/Depth |
100 mm
|
| Product Height |
85 mm
|
| Product Width |
85 mm
|
| Product Weight |
0.308 kg
|
| Certifications |
CSA-C22.2 No. 14-05
IEC/EN 60947-5 UL UL 508 UL File No.: E29184 VDE 0660 CSA-C22.2 No. 94-91 CE CSA Class No.: 3211-03 CSA File No.: 012528 CSA IEC/EN 60947-5-5 UL Category Control No.: NKCR |
| Catalog Notes |
Contacts with safety function, by positive opening to IEC/EN 60947-5-1
|
| Type |
Complete device
|
| Actuator color |
Red
|
| Features |
Tamper-proof (according to ISO 13850/EN 418)
Emergency stop pushbutton |
| Actuator function |
Maintained
Switching function latching |
| 10.10 Temperature rise |
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
|
| 10.11 Short-circuit rating |
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
|
| 10.12 Electromagnetic compatibility |
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
|
| 10.13 Mechanical function |
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
|
| 10.2.2 Corrosion resistance |
Meets the product standard's requirements.
|
| 10.2.3.1 Verification of thermal stability of enclosures |
Meets the product standard's requirements.
|
| 10.2.3.2 Verification of resistance of insulating materials to normal heat |
Meets the product standard's requirements.
|
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects |
Meets the product standard's requirements.
|
| 10.2.4 Resistance to ultra-violet (UV) radiation |
Please enquire
|
| 10.2.5 Lifting |
Does not apply, since the entire switchgear needs to be evaluated.
|
| 10.2.6 Mechanical impact |
Does not apply, since the entire switchgear needs to be evaluated.
|
| 10.2.7 Inscriptions |
Meets the product standard's requirements.
|
| 10.3 Degree of protection of assemblies |
Does not apply, since the entire switchgear needs to be evaluated.
|
| 10.4 Clearances and creepage distances |
Meets the product standard's requirements.
|
| 10.5 Protection against electric shock |
Does not apply, since the entire switchgear needs to be evaluated.
|
| 10.6 Incorporation of switching devices and components |
Does not apply, since the entire switchgear needs to be evaluated.
|
| 10.7 Internal electrical circuits and connections |
Is the panel builder's responsibility.
|
| 10.8 Connections for external conductors |
Is the panel builder's responsibility.
|
| 10.9.2 Power-frequency electric strength |
Is the panel builder's responsibility.
|
| 10.9.3 Impulse withstand voltage |
Is the panel builder's responsibility.
|
| 10.9.4 Testing of enclosures made of insulating material |
Is the panel builder's responsibility.
|
| Operating frequency |
600 Operations/h
|
| Pollution degree |
3
|
| Climatic proofing |
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30 |
| Connection to SmartWire-DT |
No
|
| Enclosure color |
Yellow
Black |
| Actuating force |
60 N
|
| Ambient operating temperature - max |
55 °C
|
| Ambient operating temperature - min |
-25 °C
|
| Equipment heat dissipation, current-dependent Pvid |
0 W
|
| Heat dissipation capacity Pdiss |
0 W
|
| Heat dissipation per pole, current-dependent Pvid |
0.11 W
|

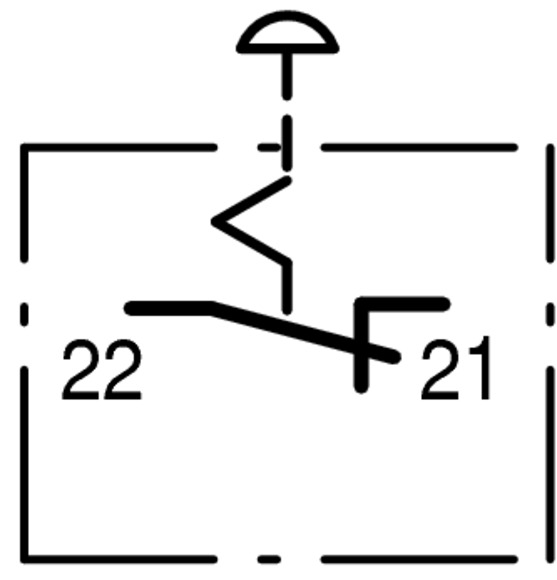

| Number of contacts (normally closed contacts) |
1
|
| Number of contacts (normally open contacts) |
0
|
| Mounting position |
As required
|
| Rated conditional short-circuit current (Iq) |
1 kA
|
| Overvoltage category |
III
|
| Degree of protection |
NEMA 12
IP67/IP69K |
| Shock resistance |
15 g, Mechanical, According to IEC/EN 60068-2-27, Half-Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27 |
| Lifespan, mechanical |
100,000 Operations
|
| Unlocking method |
Pull-release
|
| Opening diameter |
0 mm
|
| Rated operational current for specified heat dissipation (In) |
6 A
|
| Static heat dissipation, non-current-dependent Pvs |
0 W
|
| Product category |
Foot and palm switches
|
