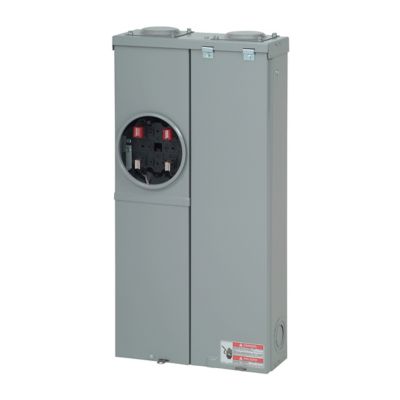

Eaton Meter Breaker EUSERC Type BR , CSR2200 main breaker, 200A, Single-phase, 120/240V, Ring, 10 kAIC, Surface mounting, Box size A, Aluminum bus, Overhead/underground feed, Four-jaws, 1 socket, #6-250 kcmil line, #6-250 kcmil ground
| Product Name |
Eaton meter breaker EUSERC
|
| Catalog Number |
MBEB200BTS
|
| UPC |
782114849279
|
| Product Length/Depth |
5.38 in
|
| Product Height |
28.38 in
|
| Product Width |
14.44 in
|
| Product Weight |
37.75 lb
|
| Warranty |
10 year
|
| Compliances |
EUSERC Approved
|
| Certifications |
UL Listed
|
| Product Type |
Meter breaker EUSERC
|
| Type |
All-in-ones
|
| Utility approvals |
AL : Alabama Power
AZ : Arizona Public Service Company NM : El Paso Electric TX : El Paso Electric ID : Idaho Power OR : Idaho Power WA : Seattle City Light AK : Anchorage Municipal Light & Power NV : NV Energy CA : City of Los Angeles - DWP (LADWP) AZ : Southern California Edison CA : Southern California Edison CA : Pacific Gas and Electric (PG&E) CA : Sacramento Municipal Utility District (SMUD) AZ : Salt River Project (SRP) HI : Hawaiian Electric MT : NorthWestern Energy NE : NorthWestern Energy SD : NorthWestern Energy WY : NorthWestern Energy AZ : Tucson Electric Power/ UniSource AZ : Sulphur Springs Valley Electric Coop WA : Puget Sound Energy WA : Tacoma Public Utilities |
| Interrupt rating |
10 kAIC
|
| Box size |
A
|
| Enclosure |
NEMA 3R
|
| Ground |
#6-250 kcmil
|
| Voltage rating |
120/240 V
|
| Number of sockets |
1
|
| Phase |
Single-phase
|
| Used with |
Type BR breakers
|
| Bus material |
Aluminum
|
| Feed type |
Top/bottom
|
| Main circuit breaker |
CSR2200
|
| Number of jaws |
Four-jaw
|
