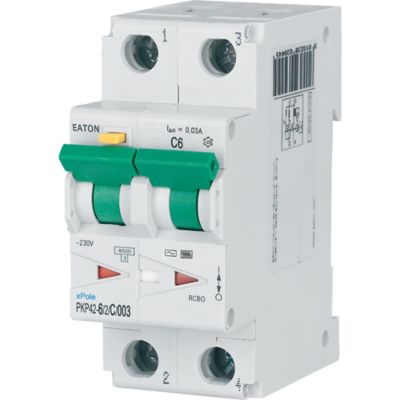

Eaton Moeller series xPole - PKP42 RCBO - residual-current circuit breaker with overcurrent protection. PKP42, 2 pole, C, In: 6 A, 4.5 kA, IΔN: 0.03 A, AC current sensitive
| Product Name |
Eaton Moeller series xPole - PKP42 RCBO - residual-current circuit breaker with overcurrent protection
|
| Catalog Number |
111606
|
| EAN |
4015081111664
|
| Product Length/Depth |
86 mm
|
| Product Height |
75 mm
|
| Product Width |
37 mm
|
| Product Weight |
0.25 kg
|
| Compliances |
CE Marked
RoHS conform |
| Certifications |
CE
|
| Basic function |
Combined RCD/MCB devices
|
| Number of poles (total) |
2
|
| Type |
RCBO
|
| Application |
Switchgear for residential and commercial applications
|
| Tripping characteristic |
C
|
| 10.5 Protection against electric shock |
Does not apply, since the entire switchgear needs to be evaluated.
|
| Sensitivity type |
Type AC, AC current sensitive.
|
| 10.6 Incorporation of switching devices and components |
Does not apply, since the entire switchgear needs to be evaluated.
|
| Sensitivity type |
Type AC, AC current sensitive.
|
| 10.9.3 Impulse withstand voltage |
Is the panel builder's responsibility.
|
| Operating ambient temperature - min |
-25 °C
|
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects |
Meets the product standard's requirements.
|
| 10.2.4 Resistance to ultra-violet (UV) radiation |
Meets the product standard's requirements.
|
| 10.7 Internal electrical circuits and connections |
Is the panel builder's responsibility.
|
| 10.3 Degree of protection of assemblies |
Does not apply, since the entire switchgear needs to be evaluated.
|
| 10.4 Clearances and creepage distances |
Meets the product standard's requirements.
|
| 10.2.7 Inscriptions |
Meets the product standard's requirements.
|
| 10.8 Connections for external conductors |
Is the panel builder's responsibility.
|
| Product application |
Switchgear for industrial and advanced commercial applications
|
| Impulse withstand current |
Partly surge-proof, 250 A
|
| 10.2.3.1 Verification of thermal stability of enclosures |
Meets the product standard's requirements.
|
| 10.12 Electromagnetic compatibility |
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
|
| 10.2.6 Mechanical impact |
Does not apply, since the entire switchgear needs to be evaluated.
|
| 10.2.5 Lifting |
Does not apply, since the entire switchgear needs to be evaluated.
|
| Current limiting class |
3
|
| Rated switching capacity (IEC/EN 61009) |
4.5 kA
|
| Rated short-circuit breaking capacity (EN 60947-2) |
0 kA
|
| Disconnection characteristic |
Undelayed
|
| 10.10 Temperature rise |
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
|
| Width in number of modular spacings |
2
|
| Heat dissipation capacity |
0 W
|
| Pollution degree |
2
|
| 10.9.2 Power-frequency electric strength |
Is the panel builder's responsibility.
|
| Built-in depth |
70 mm
|
| Surge current capacity |
0.25 kA
|
