CHPV15L85

1500 V d.c., 10 x 85 mm PV fuse holders

Especificações do produto
Adicione uma amostra grátis ao carrinho
Entre em contato comigo para falar sobre este produto
Live chat

General specifications

Product Name
Eaton Bussmann series photovoltaic fuses holder
Catalog Number
CHPV15L85
EAN
5027590497336
Product Length/Depth
69 mm
Product Height
129 mm
Product Width
22 mm
Product Weight
101.4166667 g
Compliances
CE
RoHS Compliant
Certifications
UL listed
IEC 60269-1

Especificações do produto

Used with
For use with PV Series fuse
Amperage Rating
32 A
Connection type
Screw connection
Number of poles
Single-pole
Width in number of modular spacings
1.25
Built-in depth
55 mm
Fuse size
10 x 85 mm
14 x 85 mm
Lockable
No
Utilization category
gPV (photovoltaic protection)
Interrupt rating
50 kAIC
Concurrently switching N-neutral
No
Construction size
10 x 85 mm
14 x 85 mm
Optical defect indication
No
Mounting method
DIN rail
Degree of protection
IP20
Voltage rating
1500 Vdc
Type
Fuse accessory

Exportar especificação do produto para

Declarations of conformity

Instruções de instalação

mCAD model

Nota: Se estiverem faltando arquivos no download .zip, o tipo de arquivo não é compatível com downloads em massa

Precisa de suporte do produto?

Suporte da Eaton

Suporte comercial

Fone: 0800-00-32866

Designed to work together

Descubra outros produtos e acessórios da Eaton fabricados para melhorar este produto.

  • PV-32A14LF10F

    PV-32A14LF10F

    Eaton Bussmann series Fuse-link, high speed, 32 A, DC 1300 V, 14 x 85 mm, gPV, IEC, UL, 10 mm fixing

  • PV-15A14LF10F

    PV-15A14LF10F

    Eaton Bussmann series Fuse-link, high speed, 15 A, DC 1500 V, 14 x 85 mm, gPV, IEC, UL, 10 mm fixing

  • PV-3A14LF10F

    PV-3A14LF10F

    Fuse-link, high speed, 3 A, DC 1500 V, 14 x 85 mm, gPV, IEC, UL, 10 mm fixing

  • PV-4A14LF10F

    PV-4A14LF10F

    Eaton Bussmann series Fuse-link, high speed, 4 A, DC 1500 V, 14 x 85 mm, gPV, IEC, UL, 10 mm fixing

  • PV-2-5A14LF10F

    PV-2-5A14LF10F

    Eaton Bussmann series Fuse-link, high speed, 2.5 A, DC 1500 V, 14 x 85 mm, gPV, IEC, UL, 10 mm fixing

  • PV-25A10F85L

    PV-25A10F85L

    Eaton Bussmann series Fuse-link, high speed, 25 A, DC 1500 V, IEC 60269-6 type A, 10 x 85 mm, gPV, UL PV, UL, IEC

  • PV-15A10F85L

    PV-15A10F85L

    Eaton Bussmann series Fuse-link, high speed, 15 A, DC 1500 V, IEC 60269-6 type A, 10 x 85 mm, gPV, UL PV, UL, IEC

  • PV-2-25A10F85L

    PV-2-25A10F85L

    Eaton Bussmann series Fuse-link, high speed, 2.25 A, DC 1500 V, IEC 60269-6 type A, 10 x 85 mm, gPV, UL PV, UL, IEC

  • PV-2-25A14LF10F

    PV-2-25A14LF10F

    Eaton Bussmann series Fuse-link, high speed, 2.25 A, DC 1500 V, 14 x 85 mm, gPV, IEC, UL, 10 mm fixing

  • PV-3-5A10F85L

    PV-3-5A10F85L

    Eaton Bussmann series photovoltaic fuses,Cylindrical, inverters ,Photovoltaic, 3.5 A, CHPV15L85 fuse, 30KA, DC, gPV,10 x 85 mm,White, 10 x 85 mm, 30 kAIC, Ceramic, 1500 Vdc, CHPV15L85, PV-A10F85L, CHPV15L85 F

  • PV-20A10F85L

    PV-20A10F85L

    Eaton Bussmann series Fuse-link, high speed, 20 A, DC 1500 V, IEC 60269-6 type A, 10 x 85 mm, gPV, UL PV, UL, IEC

  • PV-12A10F85L

    PV-12A10F85L

    Eaton Bussmann series Fuse-link, high speed, 12 A, DC 1500 V, IEC 60269-6 type A, 10 x 85 mm, gPV, UL PV, UL, IEC

  • PV-2-5A10F85L

    PV-2-5A10F85L

    Eaton Bussmann series Fuse-link, high speed, 2.5 A, DC 1500 V, IEC 60269-6 type A, 10 x 85 mm, gPV, UL PV, UL, IEC

  • PV-3A10F85L

    PV-3A10F85L

    Eaton Bussmann series Fuse-link, high speed, 3 A, DC 1500 V, IEC 60269-6 type A, 10 x 85 mm, gPV, UL PV, UL, IEC

  • PV-5A10F85L

    PV-5A10F85L

    Eaton Bussmann series Fuse-link, high speed, 5 A, DC 1500 V, IEC 60269-6 type A, 10 x 85 mm, gPV, UL PV, UL, IEC

  • PV-25A14LF10F

    PV-25A14LF10F

    Eaton Bussmann series Fuse-link, high speed, 25 A, DC 1300 V, 14 x 85 mm, gPV, IEC, UL, 10 mm fixing

  • PV-20A14LF10F

    PV-20A14LF10F

    Eaton Bussmann series Fuse-link, high speed, 20 A, DC 1500 V, 14 x 85 mm, gPV, IEC, UL, 10 mm fixing

  • PV-32A14LF10F

    PV-32A14LF10F

    Eaton Bussmann series Fuse-link, high speed, 32 A, DC 1300 V, 14 x 85 mm, gPV, IEC, UL, 10 mm fixing

  • PV-15A14LF10F

    PV-15A14LF10F

    Eaton Bussmann series Fuse-link, high speed, 15 A, DC 1500 V, 14 x 85 mm, gPV, IEC, UL, 10 mm fixing

  • PV-3A14LF10F

    PV-3A14LF10F

    Fuse-link, high speed, 3 A, DC 1500 V, 14 x 85 mm, gPV, IEC, UL, 10 mm fixing

  • PV-4A14LF10F

    PV-4A14LF10F

    Eaton Bussmann series Fuse-link, high speed, 4 A, DC 1500 V, 14 x 85 mm, gPV, IEC, UL, 10 mm fixing

  • PV-2-5A14LF10F

    PV-2-5A14LF10F

    Eaton Bussmann series Fuse-link, high speed, 2.5 A, DC 1500 V, 14 x 85 mm, gPV, IEC, UL, 10 mm fixing

  • PV-25A10F85L

    PV-25A10F85L

    Eaton Bussmann series Fuse-link, high speed, 25 A, DC 1500 V, IEC 60269-6 type A, 10 x 85 mm, gPV, UL PV, UL, IEC

  • PV-15A10F85L

    PV-15A10F85L

    Eaton Bussmann series Fuse-link, high speed, 15 A, DC 1500 V, IEC 60269-6 type A, 10 x 85 mm, gPV, UL PV, UL, IEC

  • PV-2-25A10F85L

    PV-2-25A10F85L

    Eaton Bussmann series Fuse-link, high speed, 2.25 A, DC 1500 V, IEC 60269-6 type A, 10 x 85 mm, gPV, UL PV, UL, IEC

  • PV-2-25A14LF10F

    PV-2-25A14LF10F

    Eaton Bussmann series Fuse-link, high speed, 2.25 A, DC 1500 V, 14 x 85 mm, gPV, IEC, UL, 10 mm fixing

  • PV-3-5A10F85L

    PV-3-5A10F85L

    Eaton Bussmann series photovoltaic fuses,Cylindrical, inverters ,Photovoltaic, 3.5 A, CHPV15L85 fuse, 30KA, DC, gPV,10 x 85 mm,White, 10 x 85 mm, 30 kAIC, Ceramic, 1500 Vdc, CHPV15L85, PV-A10F85L, CHPV15L85 F

  • PV-20A10F85L

    PV-20A10F85L

    Eaton Bussmann series Fuse-link, high speed, 20 A, DC 1500 V, IEC 60269-6 type A, 10 x 85 mm, gPV, UL PV, UL, IEC

  • PV-12A10F85L

    PV-12A10F85L

    Eaton Bussmann series Fuse-link, high speed, 12 A, DC 1500 V, IEC 60269-6 type A, 10 x 85 mm, gPV, UL PV, UL, IEC

  • PV-2-5A10F85L

    PV-2-5A10F85L

    Eaton Bussmann series Fuse-link, high speed, 2.5 A, DC 1500 V, IEC 60269-6 type A, 10 x 85 mm, gPV, UL PV, UL, IEC

  • PV-3A10F85L

    PV-3A10F85L

    Eaton Bussmann series Fuse-link, high speed, 3 A, DC 1500 V, IEC 60269-6 type A, 10 x 85 mm, gPV, UL PV, UL, IEC

  • PV-5A10F85L

    PV-5A10F85L

    Eaton Bussmann series Fuse-link, high speed, 5 A, DC 1500 V, IEC 60269-6 type A, 10 x 85 mm, gPV, UL PV, UL, IEC

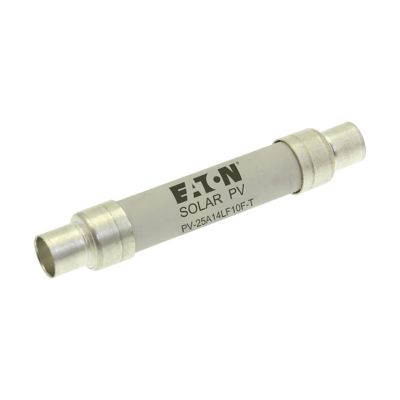

  • PV-25A14LF10F
