Grid automation system solutions

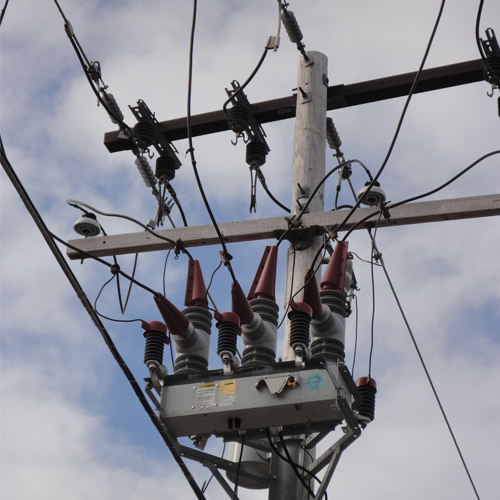

Automatic Source Transfer (AST) solution

Eaton's Automatic Source Transfer (AST) solutions, also known as Automatic Transfer System (ATS) solutions, protect critical loads that cannot tolerate a sustained loss of voltage event. Through rapid communication and flexible, user-selectable restoration options, the solution helps utilities dramatically minimize service disruptions and quickly re-energizes critical customers. The AST solution is available for three-phase and triple-single devices.

Expanded capability
Premium critical load service
Improved functionality
Automatic service restoration
Improved metrics
Minimized service disruptions

Core features

  • Automatic service restoration and multiple return to normal restoration modes
  • Built-in voltage simulator and system test capabilities
  • Fast transfer capability minimizes source disturbances to six cycles
  • Automatic disable for hot line tag or faults
  • Block and unblock ground tripping for parallel restoration
  • Available for three-phase and triple-single devices
Automatic source transfer how it works diagram

Minimize service disruptions with AST

This Automatic Source Transfer (AST) solution is designed to protect critical loads that cannot tolerate a sustained loss of voltage event. Through rapid communication and flexible, user-selectable restoration options, the solution helps utilities dramatically minimize service disruptions and quickly re-energizes critical customers.

AST solution integrated application diagram

Integrated application diagram

The Automatic Source Transfer (AST) solution has an integrated application diagram to allow for a real-time view of the system. The status of the devices as well as AST-related signals are displayed in an easy-to-read dialog. Some controls are also available to make quick changes to modes or disable the AST.

Click the Technical link to view additional key features of the Automatic Source Transfer (AST) solution.

Eaton's utility solutions

As the world pushes for decarbonization, decentralization and digitalization of power, it brings new complexities to the utility industry. Adapting to the evolving power landscape means upgrading and modernizing your solutions so you can advance the energy transition towards a more sustainable, electrified world. With more than 100 years of electrical engineering experience, innovative digital solutions and expertise across generation, transmission and distribution, Eaton can help you get there.

Specifications

Key functions of the Automatic Source Transfer (AST) solution

Flexible, user-selectable restoration options

Helps utilities quickly return systems back to the normal states after the return of the primary voltage source

Local restoration enables each control to be manually operated

Automatic restoration / Manual initiation enables restoration to the preferred source to be manually initiated from either control

Automatic restoration / Automatic initiation enables retoration to occur once the preferred feeder voltage returns

Minimized voltage-sensing requirements

Only source-side voltage sensing is required for each recloser

Eliminates redundant measurements and unnecessary data

Fast transfer times
Allows source transfer to occur before backup power is required, including generators
Optional Ground Trip Blocking When configured for parallel restoration (make-before-break), the AST can block and unblock ground tripping in the devices during the closed transition back to the normal state
Voltage simulator Simulator to allow for easy testing of the system without having to disconnect voltage from the devices in the field
Optional voltage seeking When the system is in manual restoration mode. If voltage has returned on the preferred source and is subsequently lost on the alternate source, the AST can transfer back to the preferred source where the voltage is good without needing to wait for manual operation
AST solution voltage simulator

Integrated voltage simulator

The Automatic Source Transfer (AST) solution has an integrated voltage simulator to allow for easy testing of the system without having to disconnect voltage from the devices in the field.

AST solution restoration options

Change restoration options

The Automatic Source Transfer (AST) solution has multiple options for how to react when voltage has been restored to the preferred source. The system can be manually returned to normal by operating each device separately, manually returned to normal by operating one device triggering the other device to also change state, or automatically returned to normal after voltage has returned for a configurable period of time.

AST solution voltage-seeking option

Voltage-seeking option

The Automatic Source Transfer (AST) solution has a voltage-seeking option when the system is in manual restoration mode. If voltage has returned on the preferred source and is subsequently lost on the alternate, the AST can transfer back to the preferred source where the voltage is good without needing to wait for manual operation.

AST solution MMI Close Blocked message
AST solution MMI AST Disabled message

Built-in HMI messages

The Automatic Source Transfer (AST) solution has built-in HMI messages for the user standing in front of the controls to indicate various states.
