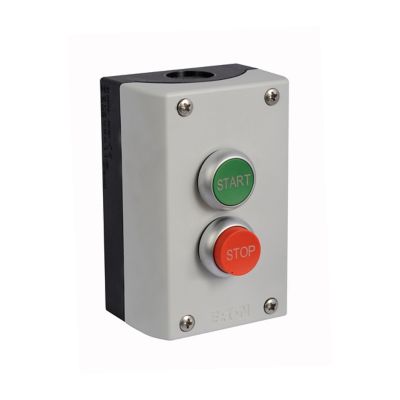

Eaton M22 Assembled two element control station, 22.5 mm, Top: flush, Bottom: extended, Momentary, Non-illuminated, Button: Green, Red, IP66, UL (NEMA) Type 4X, 13
| Product Name |
Eaton M22 pushbutton control station
|
| Catalog Number |
M22-C2-M2V
|
| UPC |
786685283012
|
| Product Length/Depth |
4.72 in
|
| Product Height |
2.7 in
|
| Product Width |
3.15 in
|
| Product Weight |
0.468 lb
|
| Warranty |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
|
| Compliances |
CE Marked
Bureau Veritas GoST-R |
| Certifications |
CSA Certified
CCC Marked Lloyd's Register Certified |
| Catalog Notes |
25% smaller depth than most competitor enclosures. Imoact resistant polycarbonate enclosure.
|
| Product Type |
Pushbutton accessory
|
| Type |
Control Station
|
| Actuator function |
Momentary
|
| Button color |
Green, red
|
| Actuator |
Pushbuttons, top: flush, bottom: extended
|
| Environmental rating |
IP66, NEMA 4X, NEMA 13
|
| Etching code |
GB1, GB0
|
| Orientation |
Vertical
|
| Contact configuration |
NO, NC
|
| Enclosure color |
Gray
|
| Illumination |
Non-illuminated
|
| Series |
M22
|
| Size |
22.5 mm
|
| Base |
Black
|
| Inscription |
START, STOP
|
