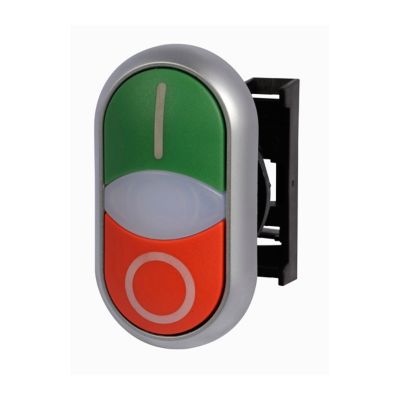

Eaton M22 modular pushbutton, 22.5 mm, Extended, Momentary, Illuminated, Bezel: Silver, Button: Top Green, Bottom Red, Inscription: Top I, Bottom O/ X1, X0, IP66, NEMA 4X, 13, Light 100,000 hours, Button 200,000 Operations
| Product Name |
Eaton M22 modular pushbutton
|
| Catalog Number |
M22-DDL-GR-X1-X0
|
| UPC |
786685272283
|
| Product Length/Depth |
2.15 in
|
| Product Height |
0.52 in
|
| Product Width |
1.17 in
|
| Product Weight |
0.995 lb
|
| Warranty |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
|
| Compliances |
CE Marked
Bureau Veritas GoST-R |
| Certifications |
CSA Certified
CCC Marked Lloyd's Register Certified |
| Catalog Notes |
Includes contact block mounting adapter.
|
| Product Type |
Modular pushbutton
|
| Application |
Pushbutton
|
| Special features |
M22 series
|
| Type |
22.5 mm Modular
|
| Bezel |
Silver
|
| Actuator function |
Momentary
|
| Button color |
Top: green, bottom: red
|
| Actuator |
Extended, dual button
|
| Illumination |
Illuminated
|
| Series |
M22
|
| Environmental rating |
IP66, NEMA 4X, NEMA 13
|
| Etching code |
X1, X0
|
| Operating cycles |
Light: 100,000, button: 200,000
|
| Inscription |
Top I, Bottom O
|
| Size |
22.5 mm
|
