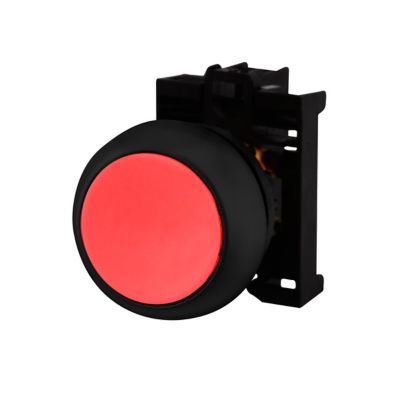

Eaton 22.5 mm RMQ-Titan Pushbutton,Spring-Cage Contact Block,Red Actuator,Black bezel,1NC,IP67, IP69K,Non-illuminated,Flush mounting,NEMA 4X, 13,5,000,000 operations,Momentary,22.5 mm,Flush Pushbutton,M22
| Product Name |
Eaton M22 modular pushbutton
|
| Catalog Number |
M22S-D-R-CK01
|
| UPC |
786685465050
|
| Product Length/Depth |
1.6 in
|
| Product Height |
2.5 in
|
| Product Width |
1.2 in
|
| Product Weight |
1 lb
|
| Warranty |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
|
| Compliances |
GoST-R
Bureau Veritas CE Marked |
| Certifications |
CSA Certified
CCC Marked Lloyd's Register Certified |
| Catalog Notes |
Positively driven contact blocks.
|
| Product Type |
Modular pushbutton
|
| Special features |
Spring-cage contact block
|
| Type |
Pushbutton
|
| Actuator color |
Red
|
| Bezel |
Black
|
| Actuator function |
Momentary
|
| Enclosure |
IP69K
IP67 |
| Button color |
Red
|
| Actuator |
Button, flush
|
| Operating mode |
Momentary
|
| Contact configuration |
1 NC
|
| Illumination |
Non-illuminated
|
| Series |
M22
|
| Environmental rating |
IP67, IP69K, NEMA 4X, NEMA 13
|
| Operating cycles |
5 million
|
| Mounting method |
Flush
|
| Degree of protection |
NEMA 13
NEMA 4X |
| Product category |
Flush pushbutton
|
| Size |
22.5 mm
|
