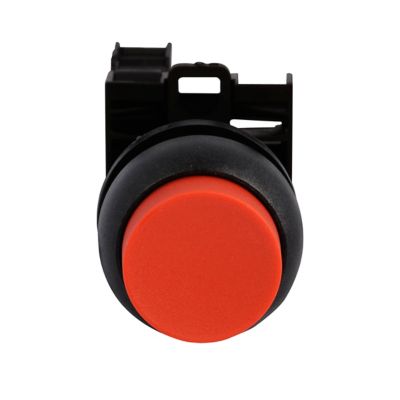

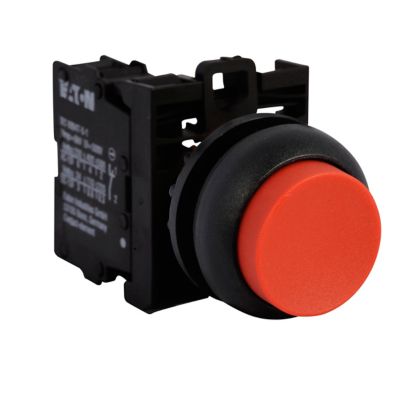

Eaton M22 modular pushbutton M22 Pushbutton, Complete Device, 22.5 mm, Extended, Momentary, Non-illuminated, Bezel: Black, Button: Red, 1NO, IP67, IP69K, NEMA 4X, 13
| Product Name |
Eaton M22 modular pushbutton
|
| Catalog Number |
M22S-DH-R-K10
|
| UPC |
786685275666
|
| Product Length/Depth |
7 in
|
| Product Height |
1.5 in
|
| Product Width |
5 in
|
| Product Weight |
0.06 lb
|
| Warranty |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
|
| Compliances |
CE Marked
Bureau Veritas GoST-R |
| Certifications |
CSA Certified
CCC Marked Lloyd's Register Certified |
| Product Type |
Modular pushbutton
|
| Type |
Pushbutton
|
| Bezel |
Black
|
| Actuator function |
Momentary
|
| Button color |
Red
|
| Actuator |
Button, extended
|
| Contact configuration |
1 NO
|
| Illumination |
Non-illuminated
|
| Series |
M22
|
| Environmental rating |
IP67, IP69K, NEMA 4X, NEMA 13
|
| Size |
22.5 mm
|
