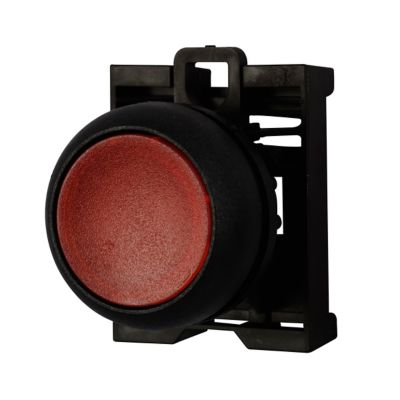

Eaton M22 modular pushbutton, 22.5 mm, Flush, Momentary, Illuminated, Bezel: Black, Button: Red, IP67, IP69K, NEMA 4x, 13, 5,000,000 Million mechanical operations
| Product Name |
Eaton M22 modular pushbutton
|
| Catalog Number |
M22S-DL-R
|
| UPC |
786685273990
|
| Product Length/Depth |
1.17 in
|
| Product Height |
0.39 in
|
| Product Width |
1.17 in
|
| Product Weight |
0.995 lb
|
| Warranty |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
|
| Compliances |
CE Marked
Bureau Veritas GoST-R |
| Certifications |
CCC Marked
CSA Certified Lloyd's Register Certified |
| Catalog Notes |
Includes contact block mounting adapter.
|
| Product Type |
Modular pushbutton
|
| Application |
Pushbutton
|
| Special features |
M22 series
|
| Type |
22.5 mm Modular
|
| Bezel |
Black
|
| Actuator function |
Momentary
|
| Button color |
Red
|
| Actuator |
Flush, button
|
| Illumination |
Illuminated
|
| Series |
M22
|
| Environmental rating |
IP67, IP69K, NEMA 4X, NEMA 13
|
| Operating cycles |
5 million
|
| Size |
22.5 mm
|
