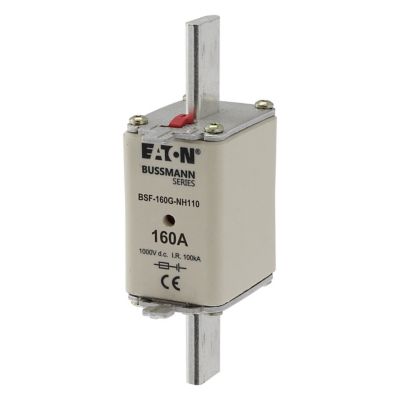

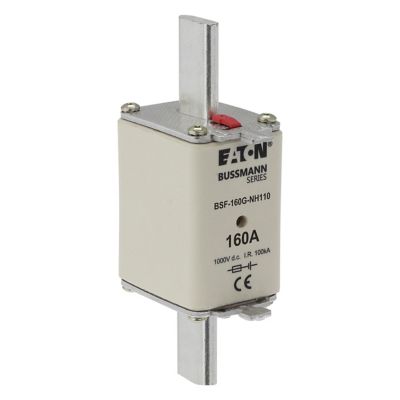

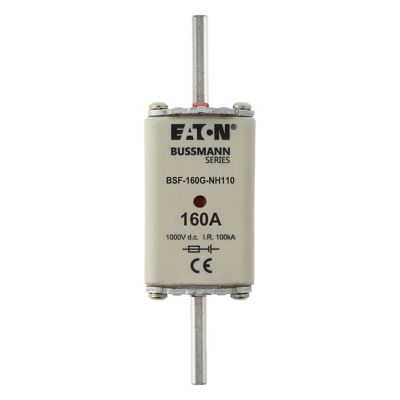

BSF-160G-NH110 - Bussmann series battery storage fuses

BSF-160G-NH110

Eaton Bussmann series Fuse-link, high speed, 160 A, DC 1000 V, NH1, 40 x 53 x 135, gBat, IEC, dual indicator, blade connection, live gripping lugs

Product specifications

Contact me about this product

IEC Fuse selection tool

Specifications Resources

General specifications

Product Name	Eaton Bussmann series NH battery storage fuse
Catalog Number	BSF-160G-NH110
EAN	5027590530095
Product Length/Depth	135 mm
Product Height	62.9 mm
Product Width	39.65 mm
Product Weight	380 g
Compliances	CE Marked RoHS Compliant
Certifications	IEC 60269-7

Electrical data

Amperage Rating	160 A
Voltage rating	1000 Vdc
Voltage type	DC
Clearing (I2T)	46800
Pre arc (I2T)	5200
Watt losses	11 W
Breaking capacity	100 kA
Class	Class gBat

Product specification

Fuse size	NH1
Fitted with:	Knife blade

Compatible fuse holder

Suitable for

SD1-D-PV NH Fuse base

Application notes

135002en BSF

Catalogues

eaton-bussmann-series-iec-high-speed-fuses-catalogue-ca135001en-en-gb.pdf

Declarations of conformity

Manuals and user guides

High speed fuses application guide

Technical data sheets

135001 BSF NH
