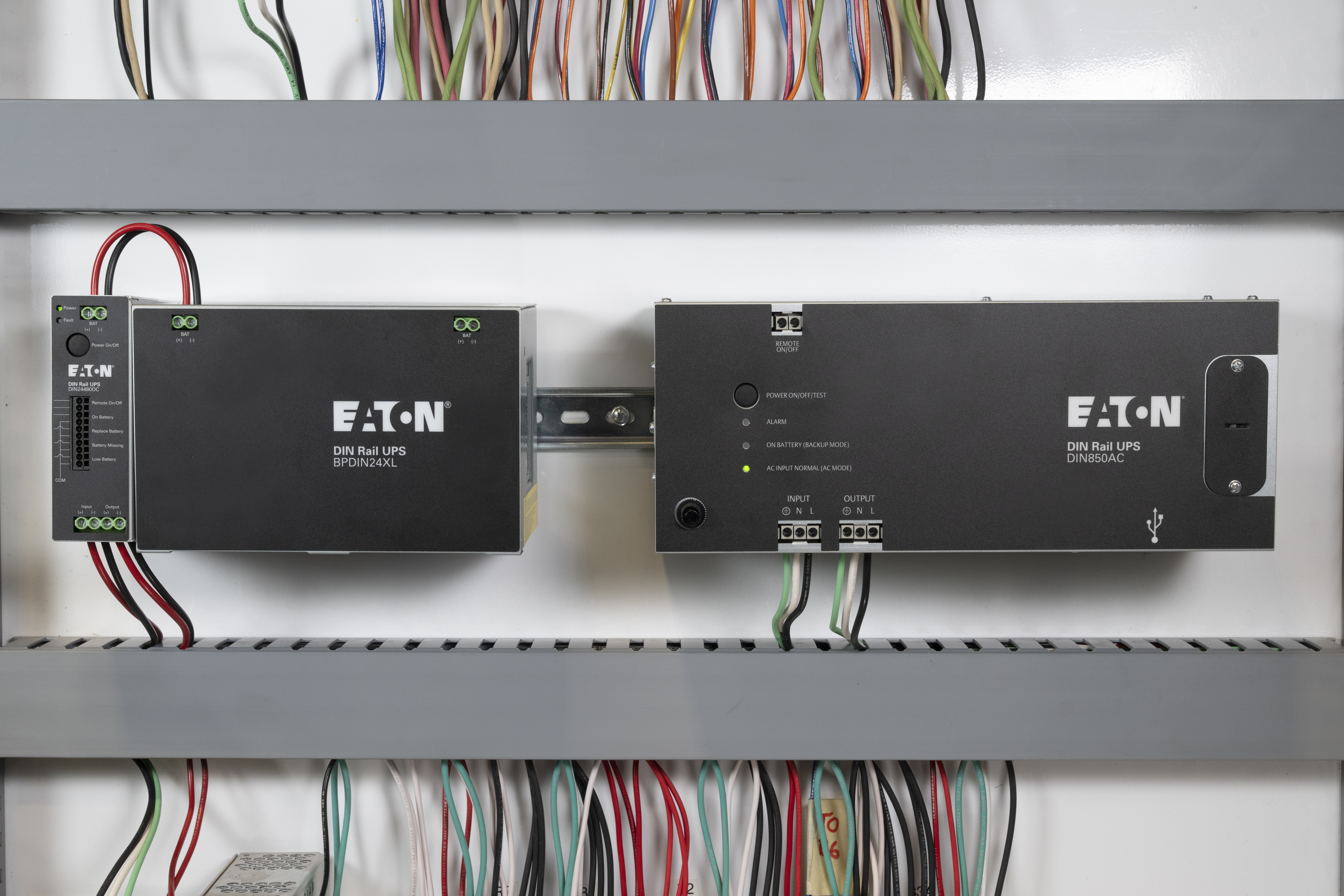

The Eaton DIN rail industrial UPS is designed to deliver reliable power and battery backup to industrial environments. This UPS can withstand the demanding conditions of warehouses, plants, and automated manufacturing and fabrication facilities. A rugged, compact housing enables this DIN rail mountable UPS to integrate seamlessly and securely into electrical enclosures. With both AC and DC options available, this DIN rail UPS can be deployed in any non-traditional IT environment.
Your search "" did not match any documents or products.
Support from Eaton
| Catalog number | Rating (VA/Watts) |
Input/output connection | Battery type | Internal runtime Full/half load |
Operating temperature | Dimensions H x W x D, lbs |
Net weight Lbs |
| 120V AC models | |||||||

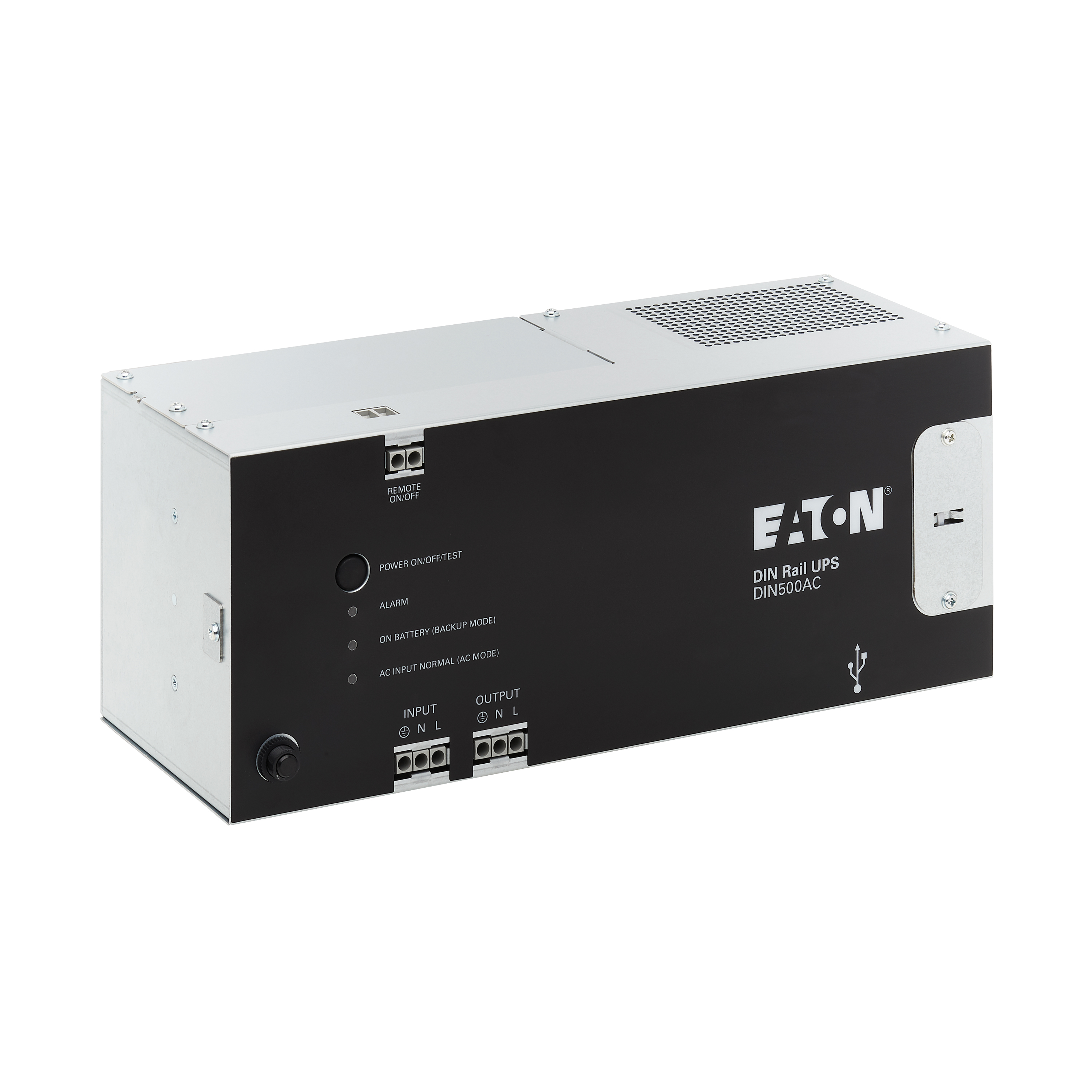

| DIN500AC | 500 VA/300W | Hardwired | User replaceable internal battery (SLA) | 4 minutes/14.5 minutes | 32˚ to 122˚ F (0˚ to 50˚C) |
5.2 x 12.3 x 5.5 | 11.6 |

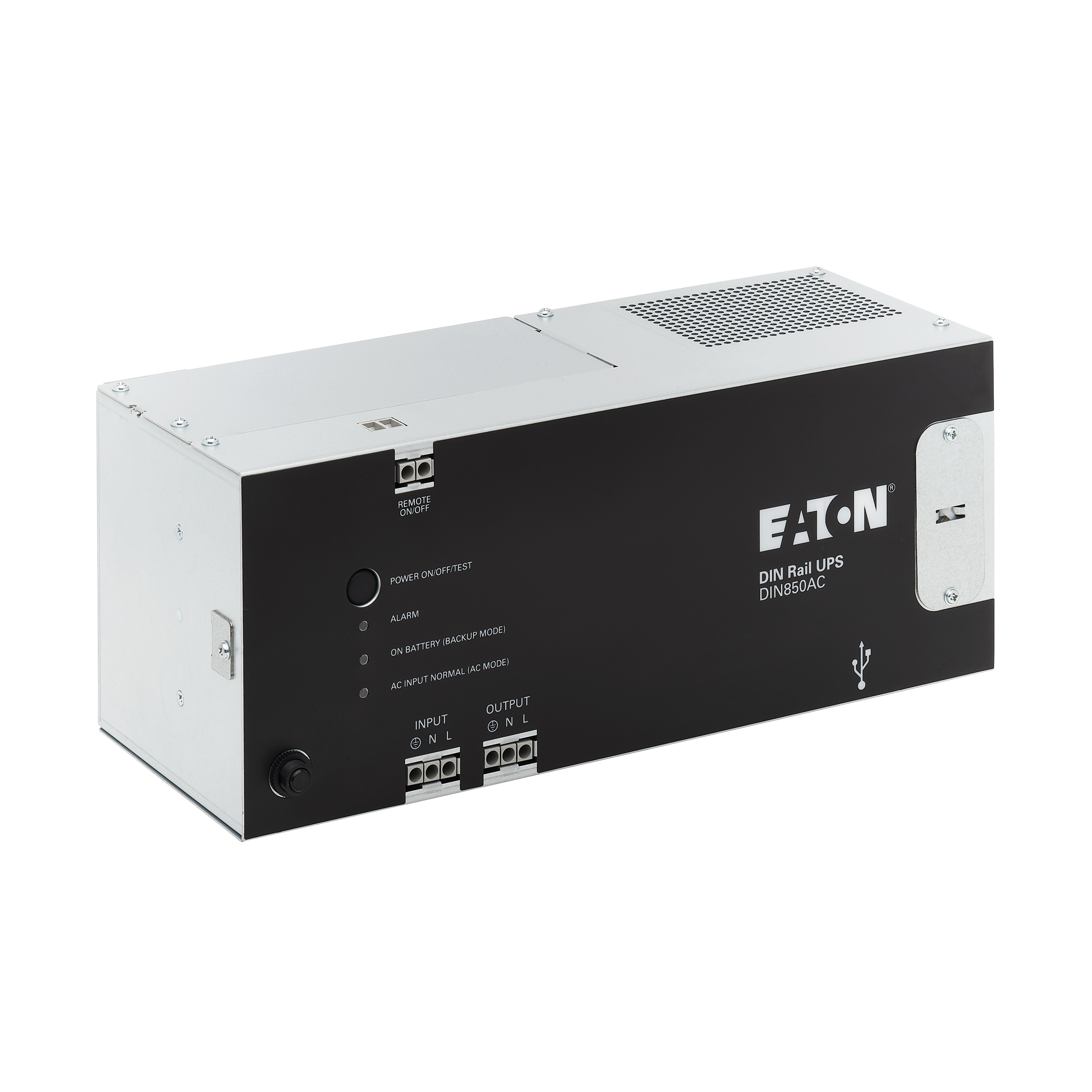

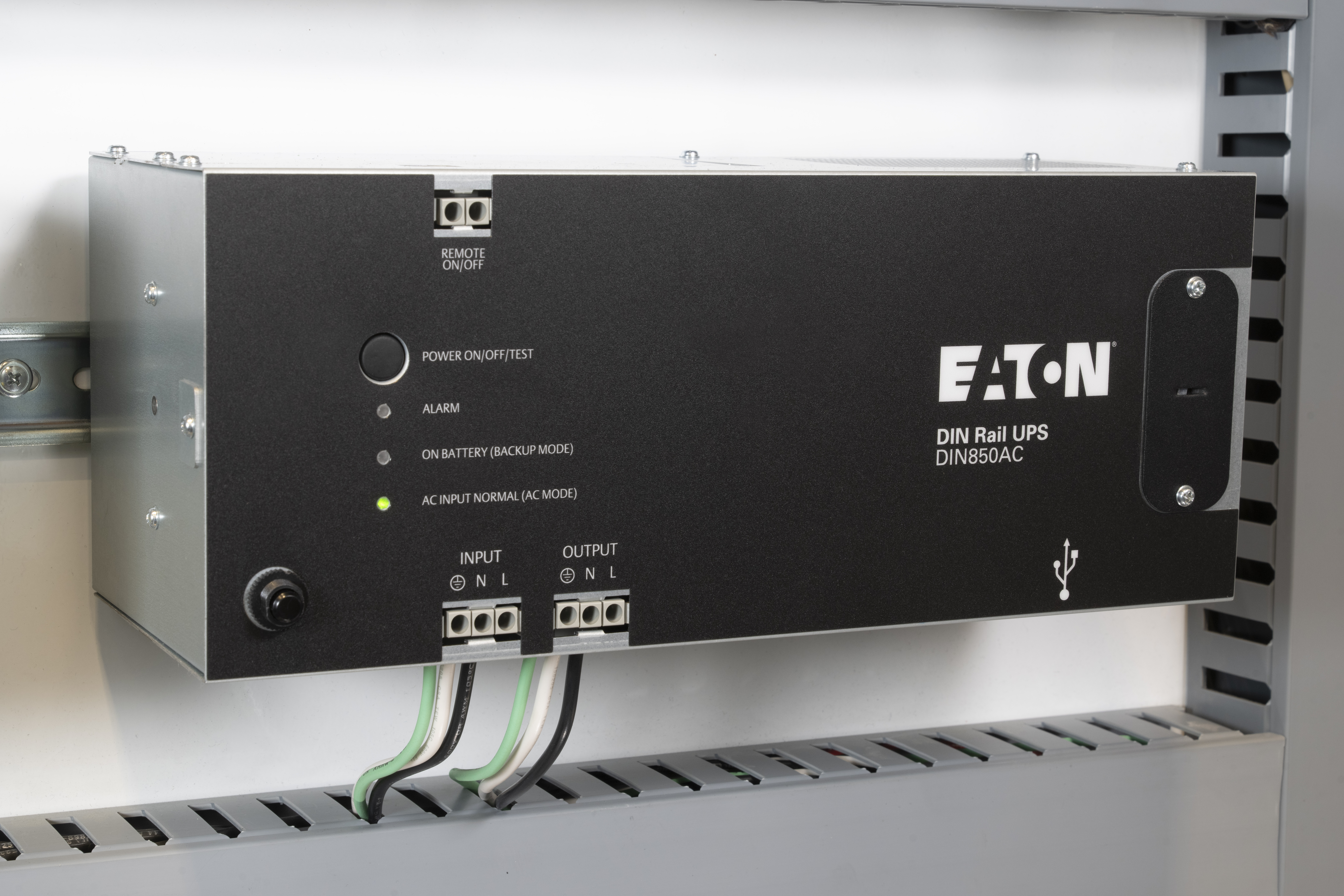

| DIN850AC | 850 VA/510W | Hardwired | User replaceable internal battery (SLA) | 2 minutes/7 minutes | 32˚ to 122˚ F (0˚ to 50˚C) |
5.2 x 12.3 x 5.5 | 11.6 |
| 24V DC models | |||||||
| DIN24240DC | --- VA/240W | Hardwired | BPDIN24XL battery module | --- | 32˚ to 122˚ F (0˚ to 50˚C) |
5.1 x 1.6 x 4.7 | 0.9 |

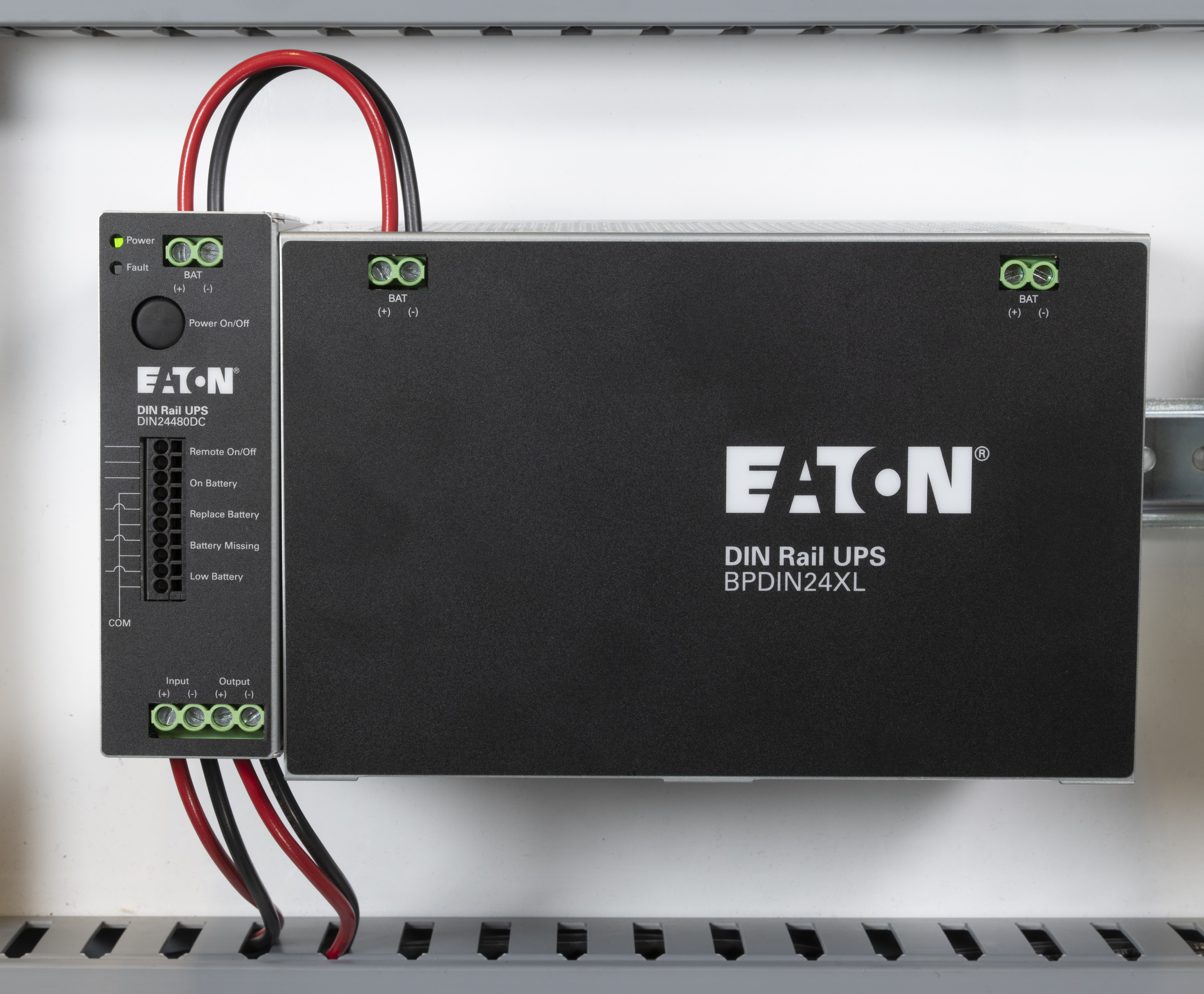

| DIN24480DC | --- VA/480W | Hardwired | BPDIN24XL battery module | --- | 32˚ to 122˚ F (0˚ to 50˚C) |
5.1 x 1.6 x 4.7 | 0.9 |
| Catalog number | +1 battery module runtime Full/half load |
Compatible UPS model |
| BPDIN24XL | 10 minutes/20 minutes | DIN24240DC |
| BPDIN24XL | 3 minutes/10 minutes | DIN24480DC |
