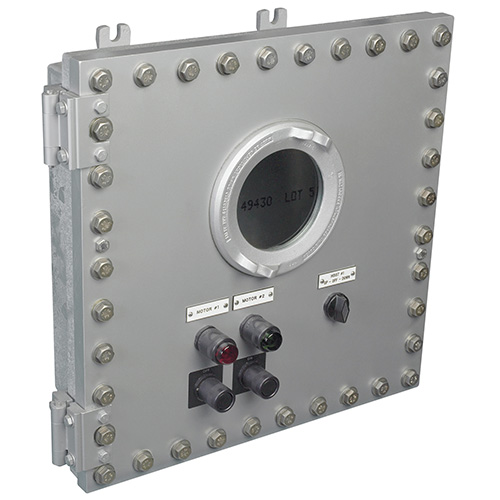

EJB Explosionproof Custom Built Control Panels

Standard enclosures and junction boxes

Crouse-Hinds series EJB explosionproof custom built control panels are built to customer-specific needs, allowing for the grouping of control devices for process control in minimum space requirements. Available in a variety of sizes with an unlimited combination of devices, windows and markings, these panels are designed to maximize the efficiency of each unique process. They are listed for Class I, Division 1 and Class II, Division 1 hazardous areas, and they also have ATEX certifications.

Contact me about this product

Download complete specs

Back to search

Overview Models Resources Support

Certifications and compliances

NEC and CEC

Class I, Divisions 1 & 2, Groups B, C, D
Class I, Zones 1 & 2
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III
UL1203
cUL to CSA standard C22.2 No. 30
Enclosure type 3, 3R, 4, 4X, 7BCD, 9EFG

ATEX

II 2 G Ex d IIB + H₂, I66

Design features

Neoprene cover gasket, between body and cover, provides NEMA 4, IP66 watertight seal
Tap-in mounting feet offer a simple and secure way to mount enclosure, and are replaceable if broken or lost
Captive, quick release stainless steel triple lead cover bolts make it easier to get in and out of the enclosure
Optional GUB explosionproof glass window is available when you need to see inside
Internal and external ground terminations simplify grounding requirements
EMP series—the most complete line of devices in the industry (pilot lights, pushbuttons, selector switches, potentiometers)
Optional individual device markings to clearly indicate the function of each device (may be added in the field)
Optional engraved nameplates
Copper-free aluminum construction available with Corro-free epoxy powder coat for additional protection in corrosive atmospheres
NPT or metric entries available
Internal mounting plate standard
Stainless steel hinges

Standard materials

Enclosure – copper-free aluminum
Hinges – stainless steel

Specifications

Ordering information

For ordering information, please use the link below to visit the resources page for this product family and look under the "Catalogs" heading.

Download Links

Catalogs

Crouse-Hinds series EJB Explosionproof Custom Built Control Panels catalog page

(PDF 2 MB , 07/29/2022)

Certification reports

Installation instructions

IF 1396 - EJB Custom Control Panels

(PDF 301 KB , 09/08/2021)
