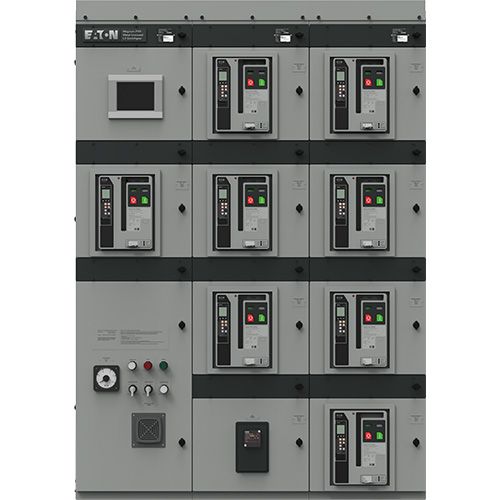

Magnum PXR low-voltage switchgear offers reliable protection and centralized control of low-voltage power circuits up to 600 volts for a wide range of industries including healthcare, data centers and petrochemical. Low-voltage switchgear is a metal-enclosed assembly with three-position, draw-out power circuit breakers engineered to monitor and protect low voltage electrical systems.
This series of ten short videos is designed to provide some basic knowledge on the composition of low-voltage switchgear and enable you to better identify components of low-voltage switchgear.
Whether you need a service entrance rating or epoxy coated bus bars, infrared scanning windows, continuous thermal monitoring, an arc quenching solution, or safety shutters, Magnum PXR low-voltage switchgear can be engineered to support your application.
When providing redundant power sources for critical power applications, select the:
| VOLTAGE |
Up to 600 V |
| CONTINUOUS MAIN BUS CURRENT | 1,600 A to 10,000 A |
| SHORT-CIRCUIT WITHSTAND | Up to 100 kA |
| SHORT-TIME WITHSTAND | 30 cycles |
| CIRCUIT BREAKER AMPS | Up to 6,000 A |
| ANSI / IEEE | C37.20.1, C37.51 |
|
| UL |
1558 and 1066 | |
| CSA |
C22.2 No. 31-10 |
|
| OTHER CERTIFICATIONS | ABS |
|
| SEISMIC QUALIFICATION | Contact factory |
| CONSTRUCTION |
Metal-enclosed |
| POWER TERMINATIONS | Front access |
| INSULATING MEDIUM | Air |
| ENCLOSURE TYPE | NEMA 1 indoor, NEMA 3R outdoor |
| INDOOR SECTION DIMENSIONS | 18" to 44" wide |
| 40" to 90" deep and 96" high |
| OVERCURRENT PROTECTION | Power circuit breaker, UL 1066 |
| DEVICE MOUNTING | Draw-out |
